Synology Docker 기반으로 Hadoop 설치하기

대용량 분산처리 시스템 Hadoop 공부를 위해서 설치를 진행해 봤습니다.

환경 : Synology Docker - Ubuntu container

apt-get update
apt-get upgrade

apt-get install software-properties-common

add-apt-repository ppa:openjdk-r/ppa

apt-get update

apt-get install openjdk-8-jdk

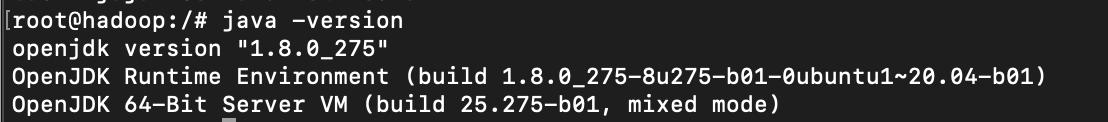

java -version



기본 환경 및 java 설치 후 hadoop 유저 설정 및 hadoop 홈 폴더를 만들고 파일을 내려받아 설치합니다.

sudo adduser hadoop
passwd hadoop -d

su hadoop

cd ~
mkdir hadoop
cd hadoop

wget https://downloads.apache.org/hadoop/common/hadoop-3.3.0/hadoop-3.3.0.tar.gz
tar xvzf hadoop-3.3.0.tar.gz

vi ~/.bashrc
export JAVA_HOME=/usr/lib/jvm/java-8-openjdk-amd64
export HADOOP_HOME=~/hadoop/hadoop-3.3.0
export HADOOP_CONFIG_HOME=$HADOOP_HOME/etc/hadoop
export PATH=$PATH:$HADOOP_HOME/bin
export PATH=$PATH:$HADOOP_HOME/sbin
source ~/.bashrc

cd $HADOOP_HOME/

mkdir tmp
mkdir namenode
mkdir datanode



namenode, datanode 폴더를 만들고 hadoop 환경 설정을 시작합니다.

cd $HADOOP_CONFIG_HOME/

vi hadoop-env.sh
#추가
export JAVA_HOME=/usr/lib/jvm/java-8-openjdk-amd64
export HDFS_NAMENODE_USER="hadoop"
export HDFS_DATANODE_USER="hadoop"
export HDFS_SECONDARYNAMENODE_USER="hadoop"
export YARN_RESOURCEMANAGER_USER="hadoop"
export YARN_NODEMANAGER_USER="hadoop"
export HADOOP_SSH_OPTS="-p 22"

vi core-site.xml
#추가
<!-- Put site-specific property overrides in this file. -->

<configuration>
        <property>
                 <name>hadoop.tmp.dir</name>
                <value>/home/hadoop/hadoop/hadoop-3.3.0/tmp</value>
        </property>

        <property>
                <name>fs.default.name</name>
                <value>hdfs://{host}:9000</value>
                <final>true</final>
        </property>
</configuration>

vi mapred-site.xml
#추가
<!-- Put site-specific property overrides in this file. -->

<configuration>
    <property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>

    <property>
        <name>mapred.job.tracker</name>
        <value>{host}:9001</value>
    </property>

    <property>
        <name>dfs.http.address</name>
        <value>{host}:9870</value>
    </property>
</configuration>

vi hdfs-site.xml
#추가
<configuration>
    <property>
        <name>dfs.replication</name>
        <value>3</value>
        <final>true</final>
    </property>

    <property>
        <name>dfs.namenode.name.dir</name>
        <value>/home/hadoop/hadoop/hadoop-3.3.0/namenode</value>
        <final>true</final>
    </property>

    <property>
        <name>dfs.datanode.data.dir</name>
        <value>/home/hadoop/hadoop/hadoop-3.3.0/datanode</value>
        <final>true</final>
    </property>
</configuration>

vi yarn-site.xml
#추가
<configuration>

<!-- Site specific YARN configuration properties -->
  <property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
  </property>
  <property>
    <name>yarn.resourcemanager.address</name>
    <value>{host}:8032</value>
  </property>
  <property>
    <name>yarn.resourcemanager.scheduler.address</name>
    <value>{host}:8030</value>
  </property>
  <property>
    <name>yarn.resourcemanager.resource-tracker.address</name>
    <value>{host}:8031</value>
  </property>
  <property>
    <name>yarn.resourcemanager.admin.address</name>
    <value>{host}:8033</value>
  </property>
  <property>
    <name>yarn.resourcemanager.webapp.adress</name>
    <value>{host}:8088</value>
  </property>
</configuration>





컨테이너를 종료하고 Docker 이미지를 내보냅니다.

sudo docker commit hadoop hadoop-img

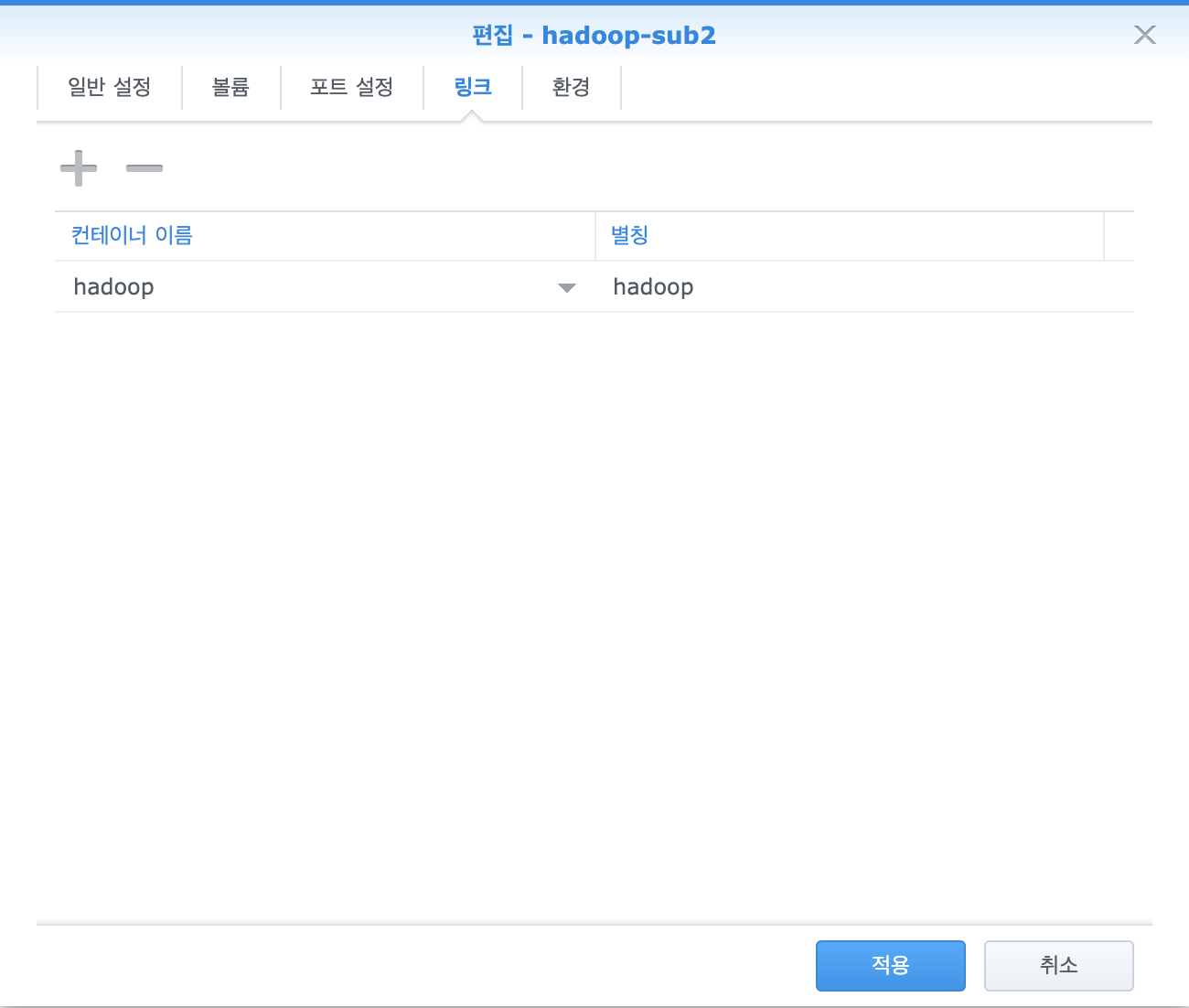

생성한 이미지로 sub 컨테이너를 만들고 main 컨테이너를 링크합니다.



vi /etc/hosts

#추가
{컨테이너 IP}      slave1
{컨테이너 IP}      slave2


vi $HADOOP_CONFIG_HOME/slaves
# datanode containers
slave1
slave2
hadoop


vi $HADOOP_CONFIG_HOME/workers
localhost
slave1
slave2
hadoop



start-all.sh로 하둡을 실행할 때 pdsh@hadoop: hadoop: connect: Connection refused 에러가 발생할 경우

아래와 같이 수정해 주세요

vi $HADOOP_HOME/libexec/hadoop-functions.sh

#수정
if [[ -e '/usr/bin/pdsh' ]]; then

->
if [[ ! -e '/usr/bin/pdsh' ]]; then



hdfs namenode -format



다음으로 SSH 접속을 설정합니다.

<root 계정>
apt-get install -y openssh-server openssh-client net-tools

<hadoop 계정>
ssh-keygen -t rsa -b 4096 -C "{email Address}" -f ~/.ssh/id_rsa

cd ~/.ssh
cat id_rsa.pub >> authorized_keys

<root 계정>
mkdir ~/var/run/sshd
sed -i 's/#Port 22/Port 22/g' /etc/ssh/sshd_config

vi /etc/ssh/sshd_config
#수정
PermitRootLogin yes #prohibit-password
PasswordAuthentication yes
UseLogin yes

sudo passwd root

<hadoop 계정>
#test
ssh localhost

<root 계정>
service ssh start
(sub node에서도 실행)

vi ~/.bashrc

#autorun
/usr/sbin/sshd

source ~/.bashrc



start-all.sh

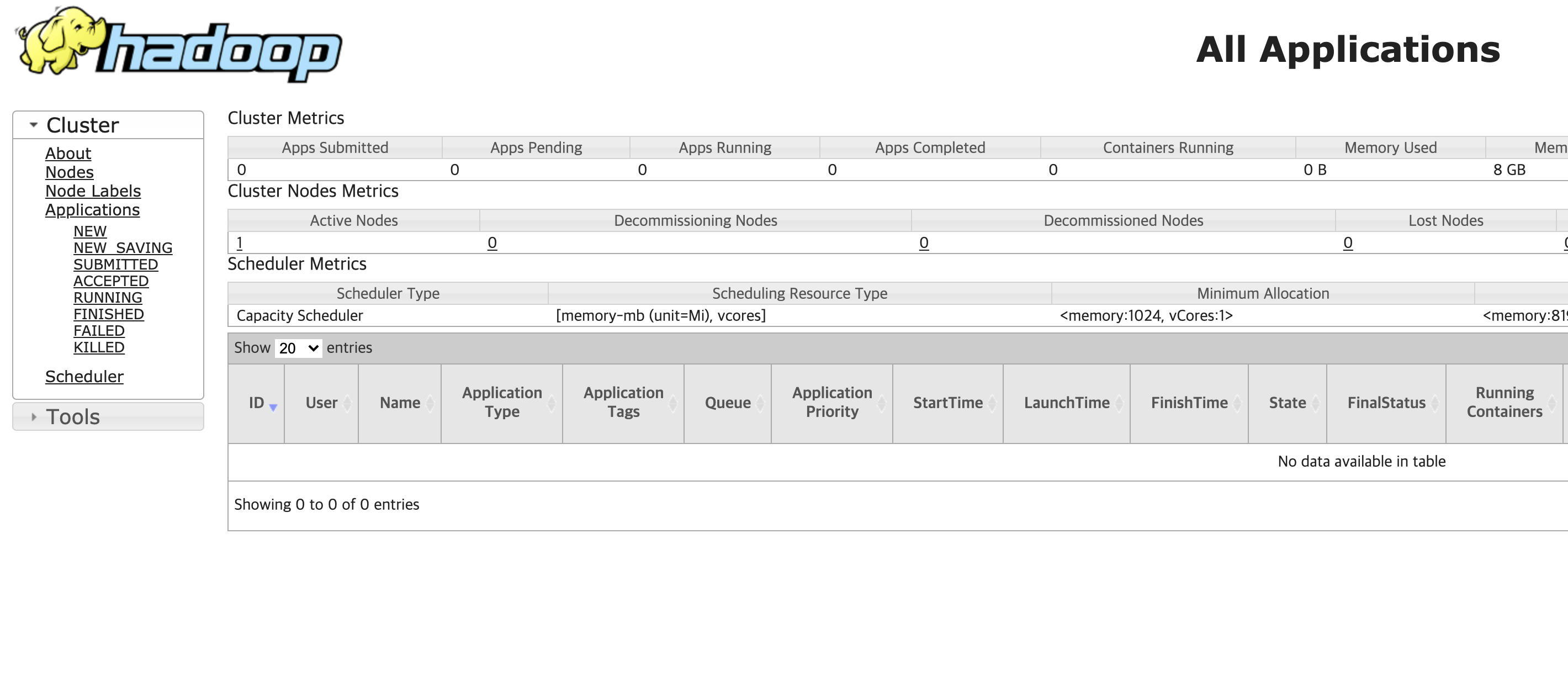

{host 주소}:8088 로 접속하면 아래와 같은 Resource Manager 페이지가 나타납니다.



hadoop 관리자 페이지는 버전 3점대부터 기본 port가 50070 -> 9870으로 바뀌었습니다.



테스트를 위해 WordCount 예제를 실행해 보았습니다.

cd $HADOOP_HOME

hadoop fs -mkdir -p /test
hadoop fs -put LICENSE.txt /test
hadoop fs -ls /test

hadoop jar share/hadoop/mapreduce/hadoop-mapreduce-examples-3.3.0.jar wordcount /test /test-out
hadoop fs -cat /output/*
